Unmatched Offshore Performance

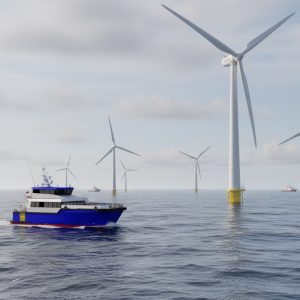

The WMD 90 CTV remains one of the most sought-after platforms in Offshore Wind. At 27m LOA, its versatile size, excellent speed and fuel economy, generous deck cargo capacity, and ability to carry up to 30 passengers make it suitable for a wide range of offshore sites. Thanks to its proven hull form, the WMD Class of CTV’s maintains exceptional seakeeping and operational capability, even when conditions become challenging.
Maximum deck space
Designed for tough conditions
Specification
Principal Particulars
- Length Overall: 27.20 metres
- Length Waterline: 23.44 metres
- Load Line Length: 23.80 metres
- Beam: 10.30 metres
- Operating Draught: 1.10 - 1.80 metres
Capacities
- Fuel Oil: 38,200 litres
- Fresh Water: 5,000 litres
- Black Water: 1,750 litres
- Grey Water: 1,750 litres
- Deck Cargo: 10.00 tonnes
- Deck Area: 90.00 m2
- Crew: 3-6
- Industrial Personnel: 12-30
Machinery
- Main Engines: 2 x Caterpillar C32B
- Gearboxes: 2 x ZF5050 V
- Propulsion: 2 x CPP, FPP, IPS or Waterjets
Performance
- Max Speed: 27 knots
- Service Speed: 24 knots
- Range: 1,000 NM
